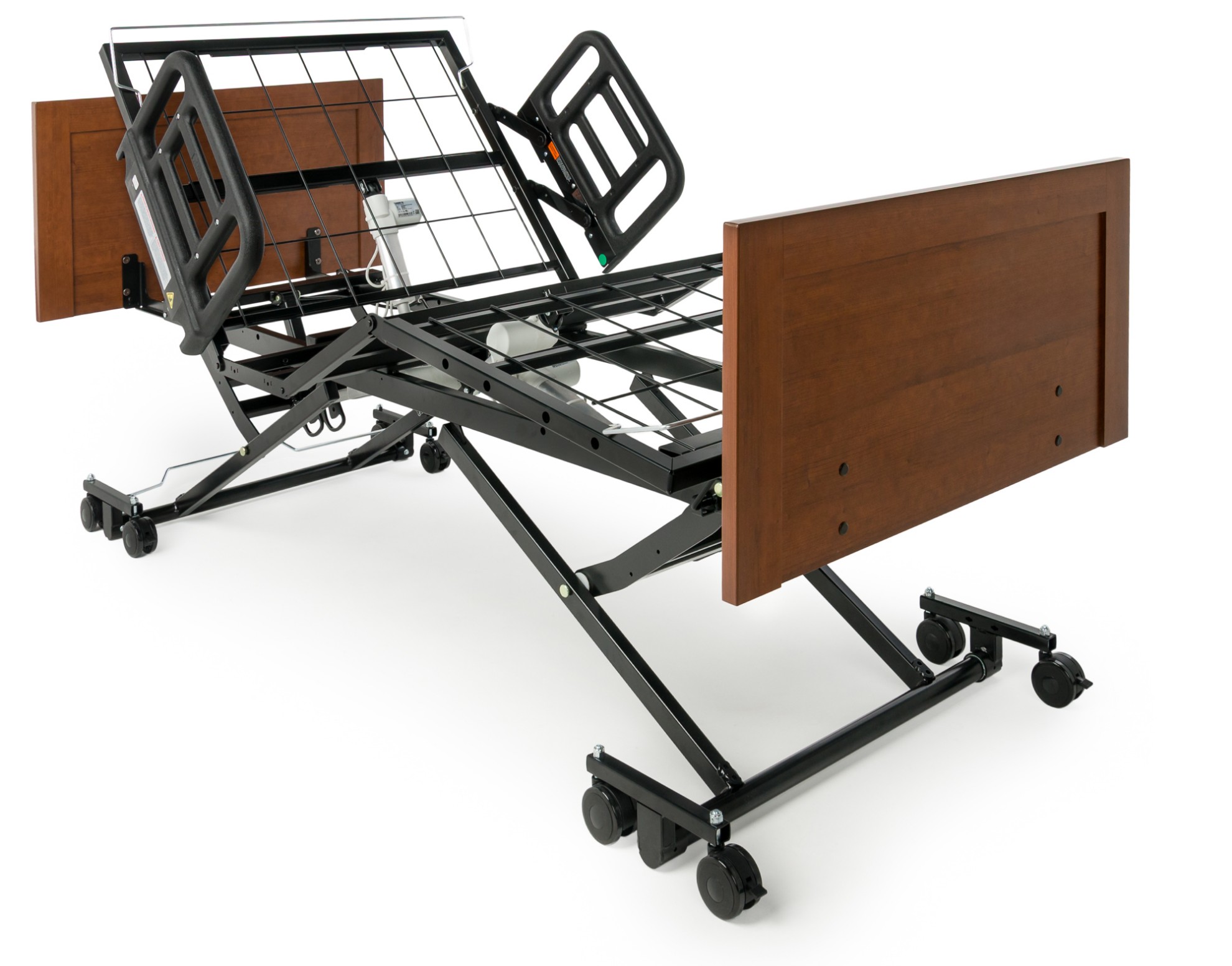

AmeriLux™ Sleep System

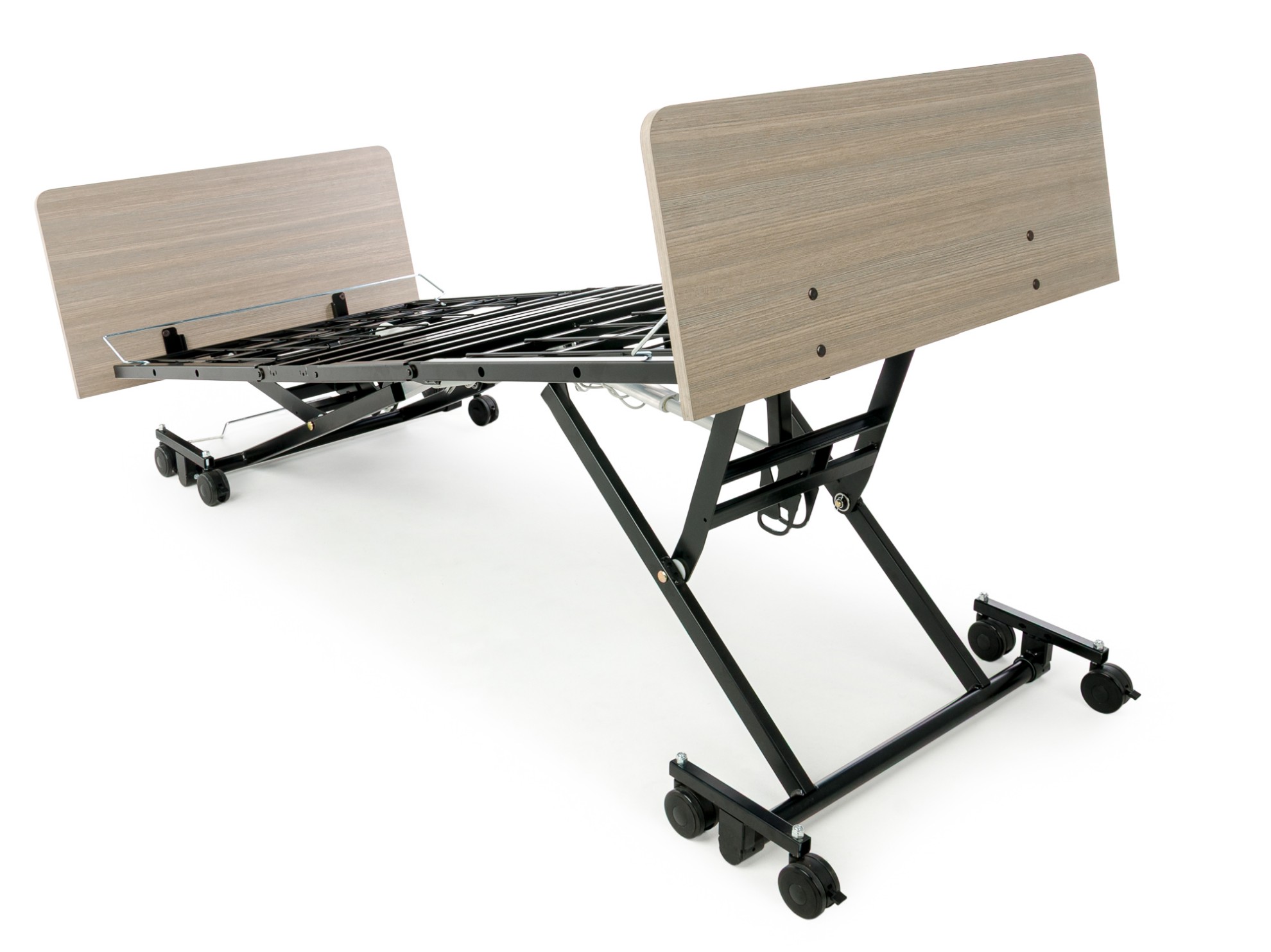

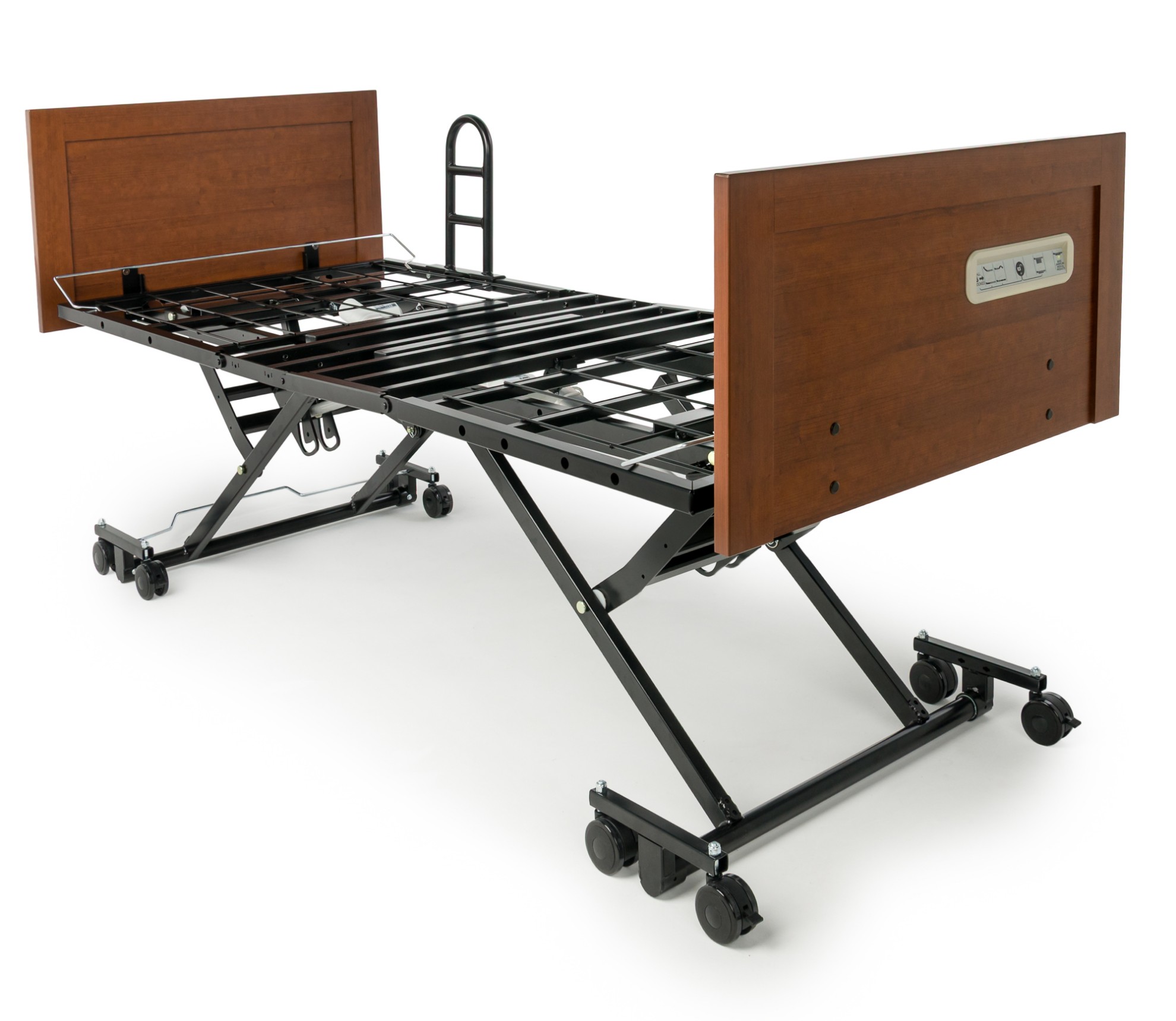

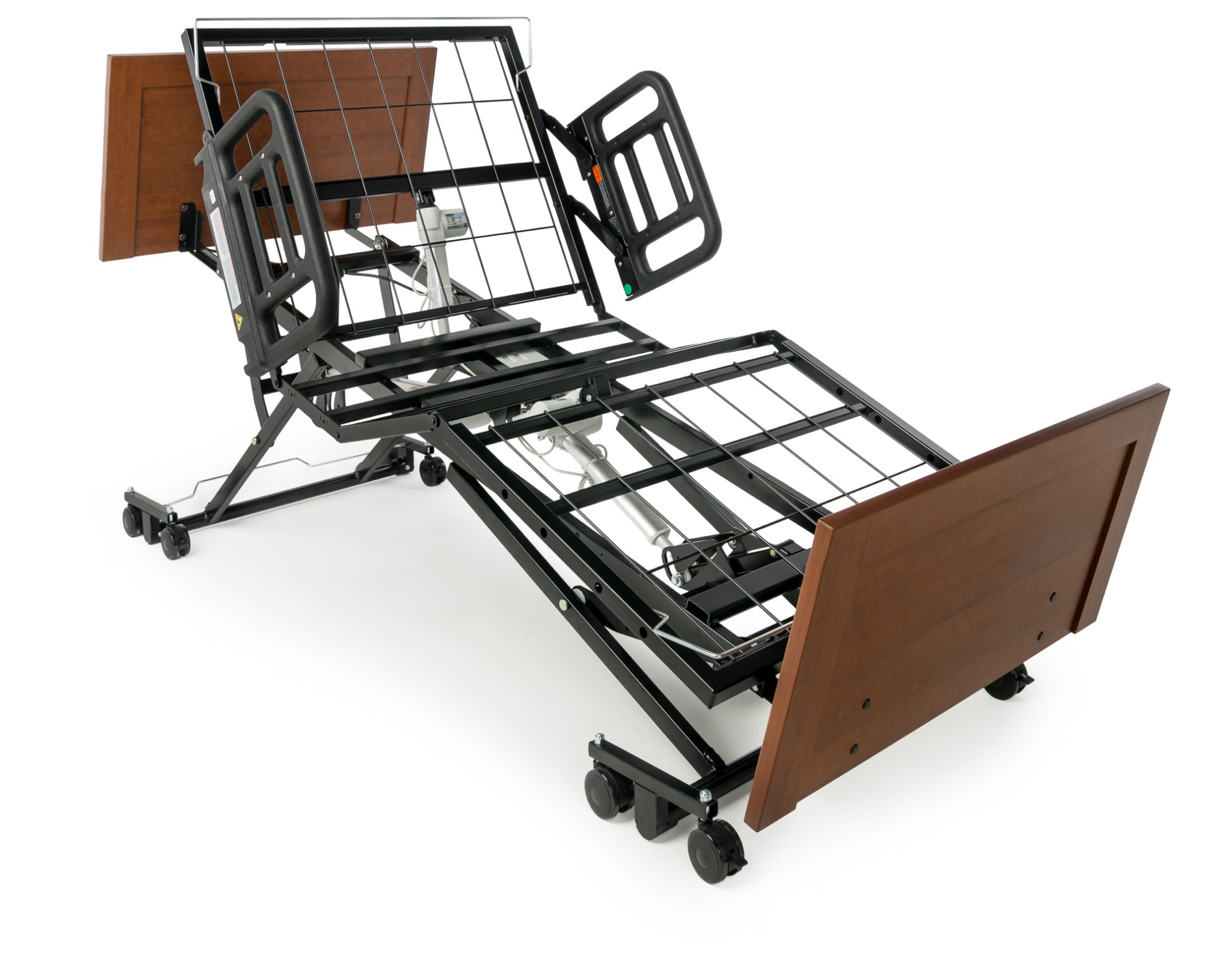

High Supine

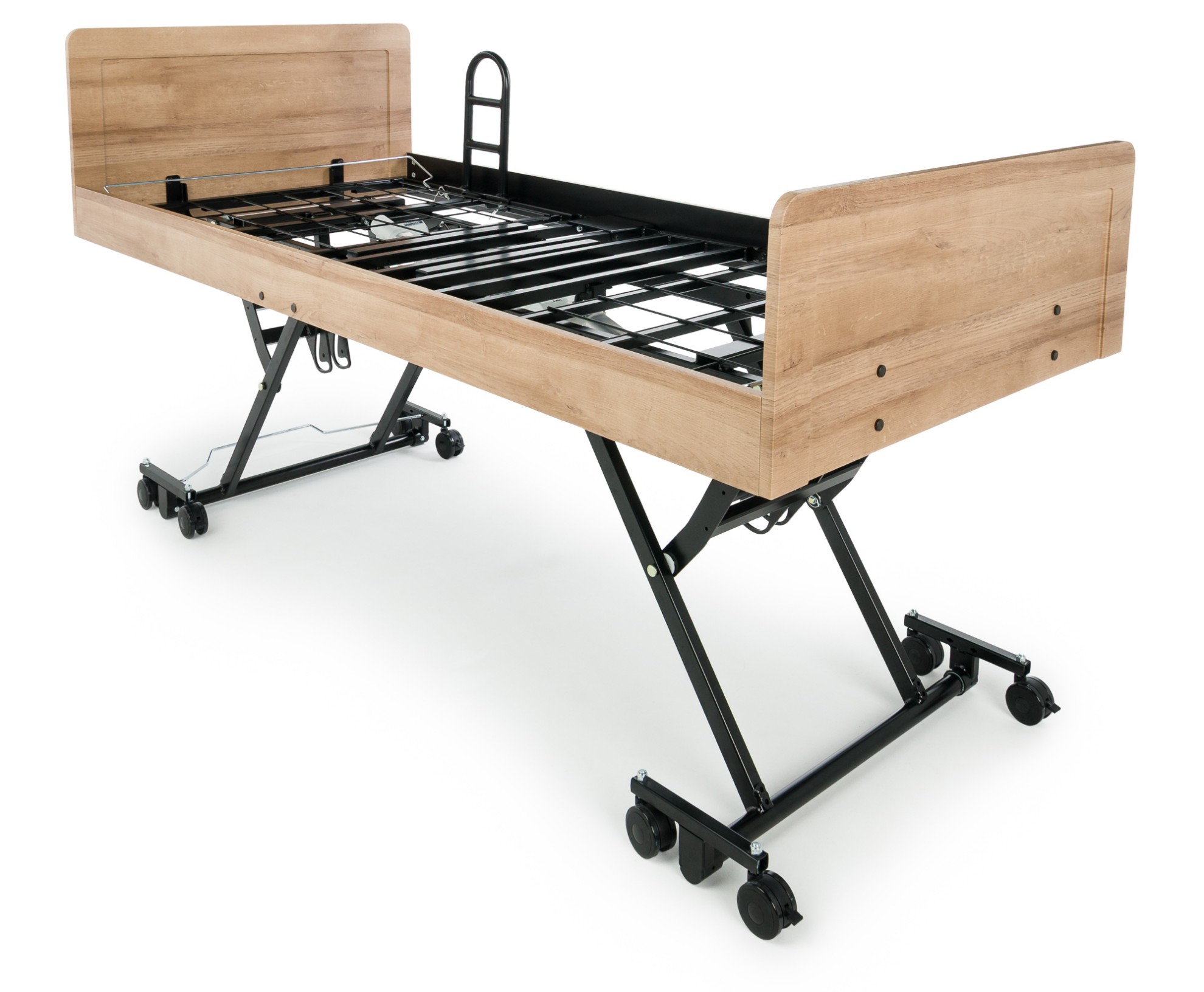

High Supine

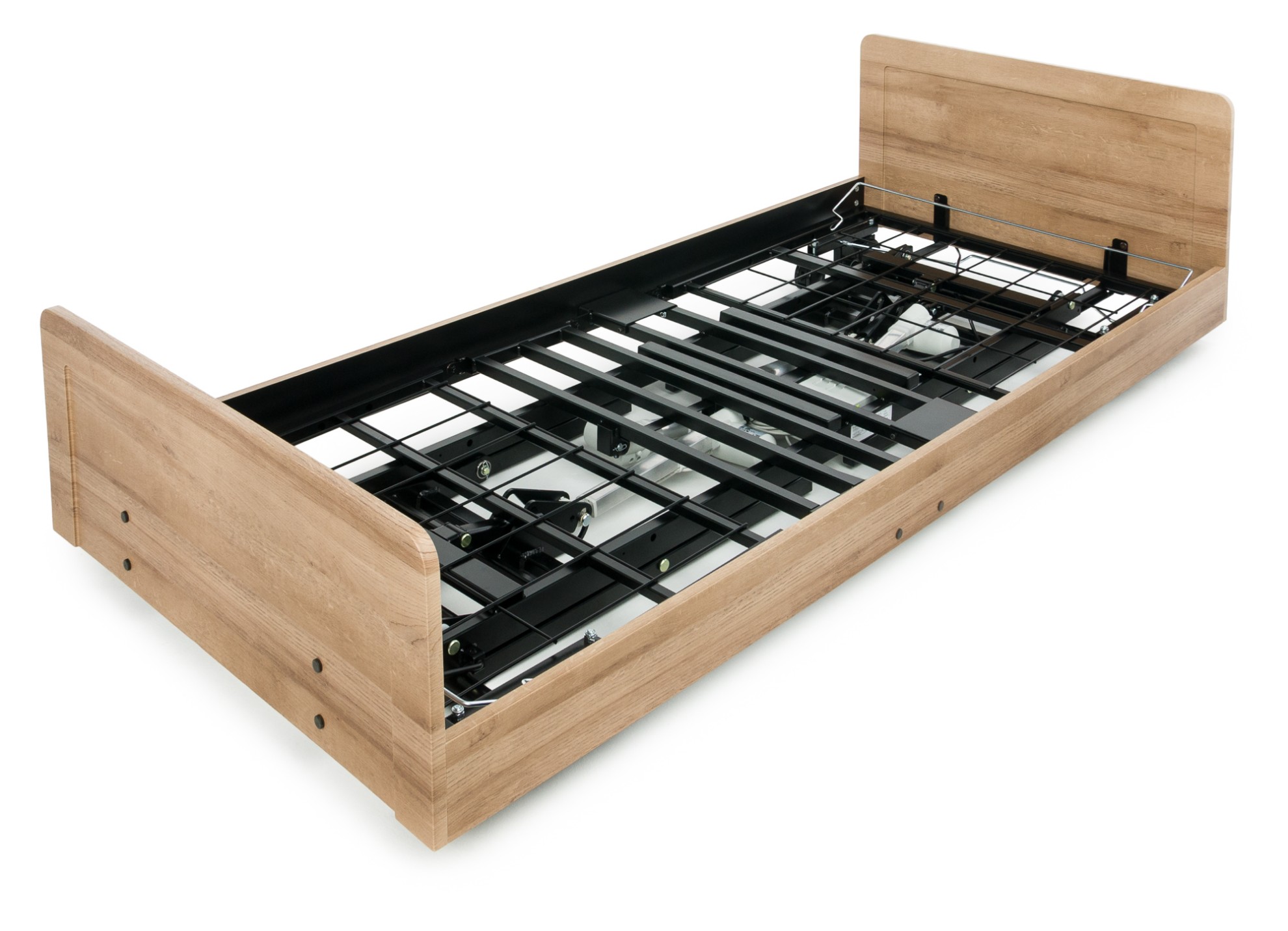

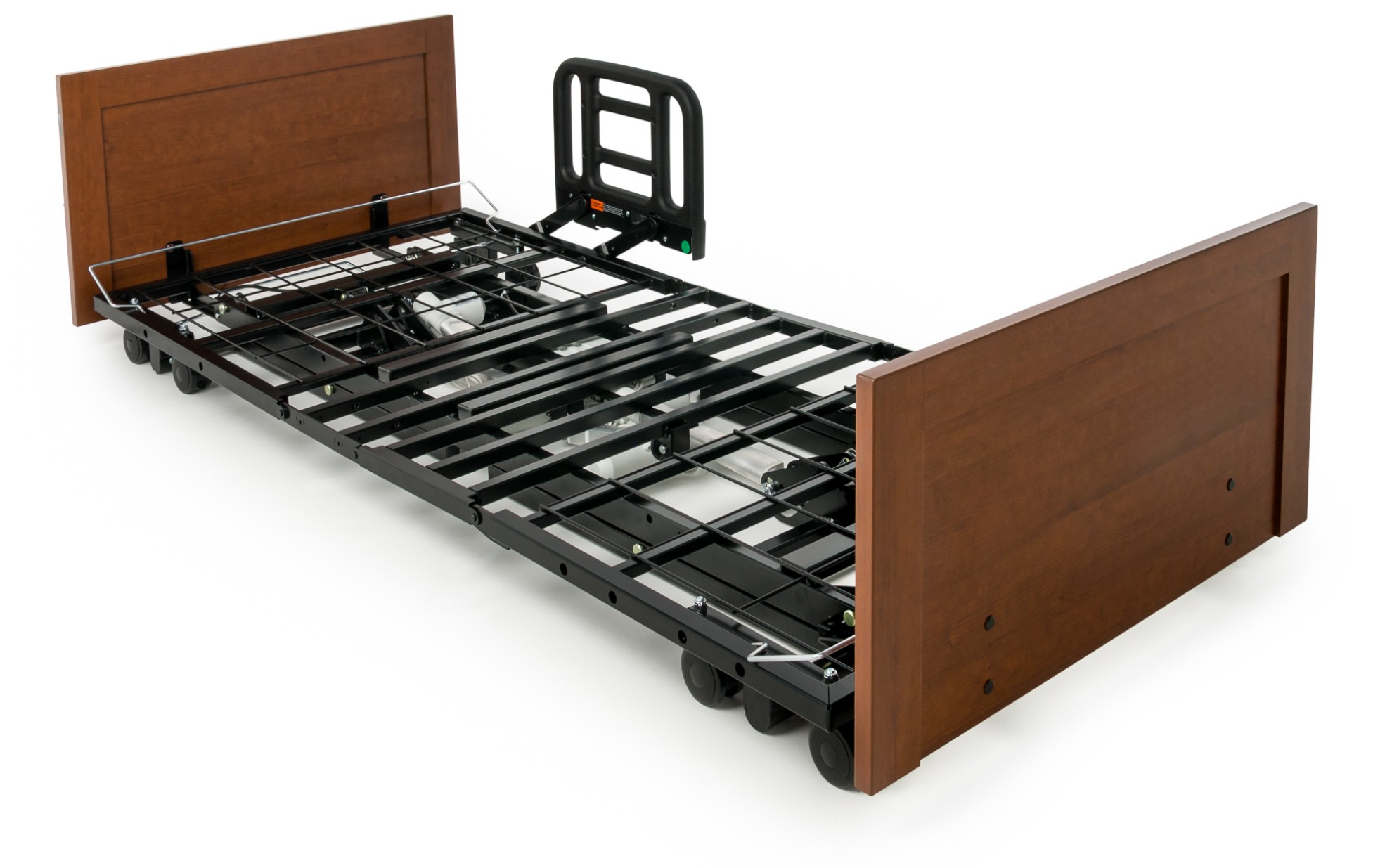

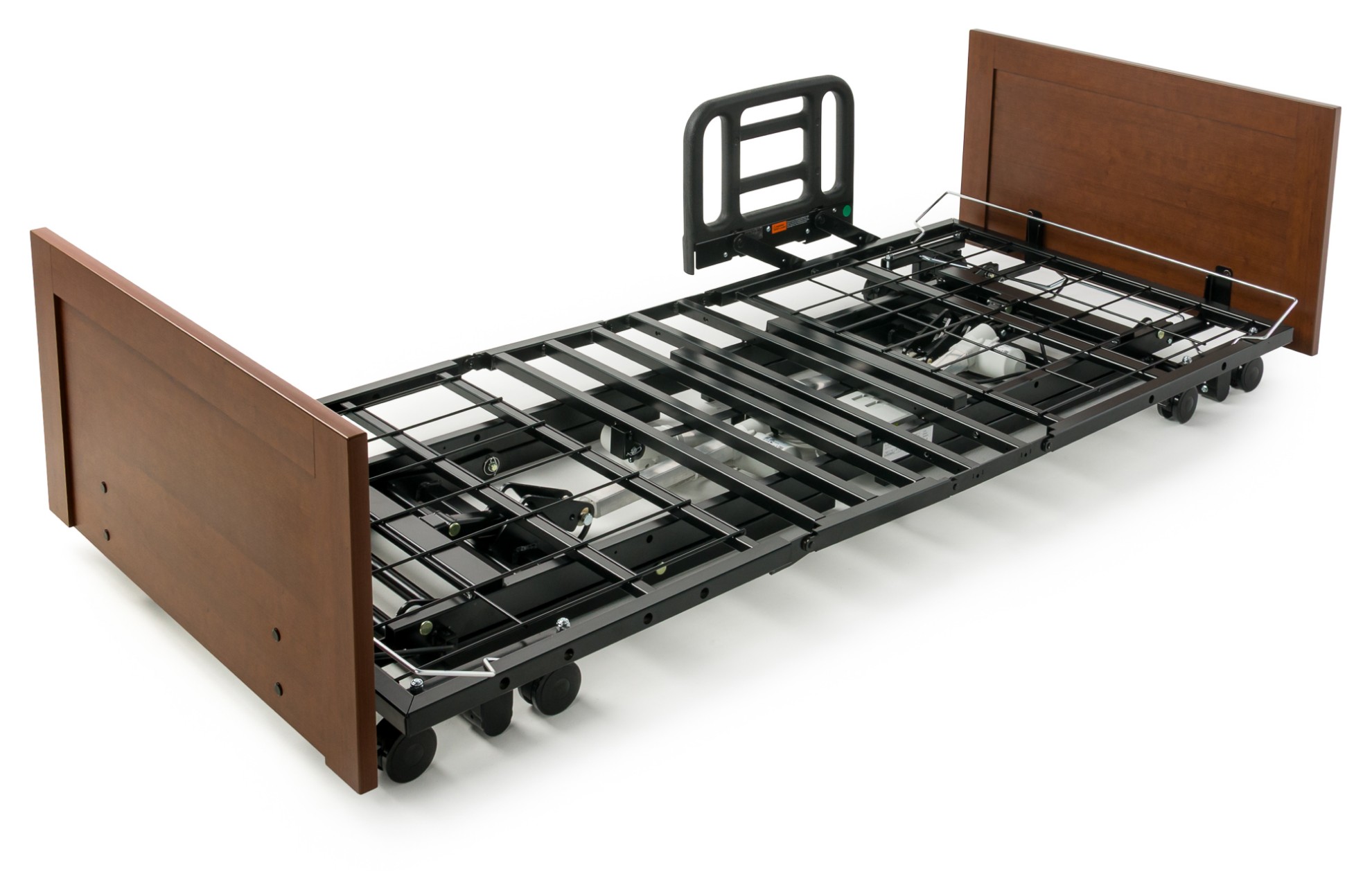

Low Position
Chair Position
Low Position

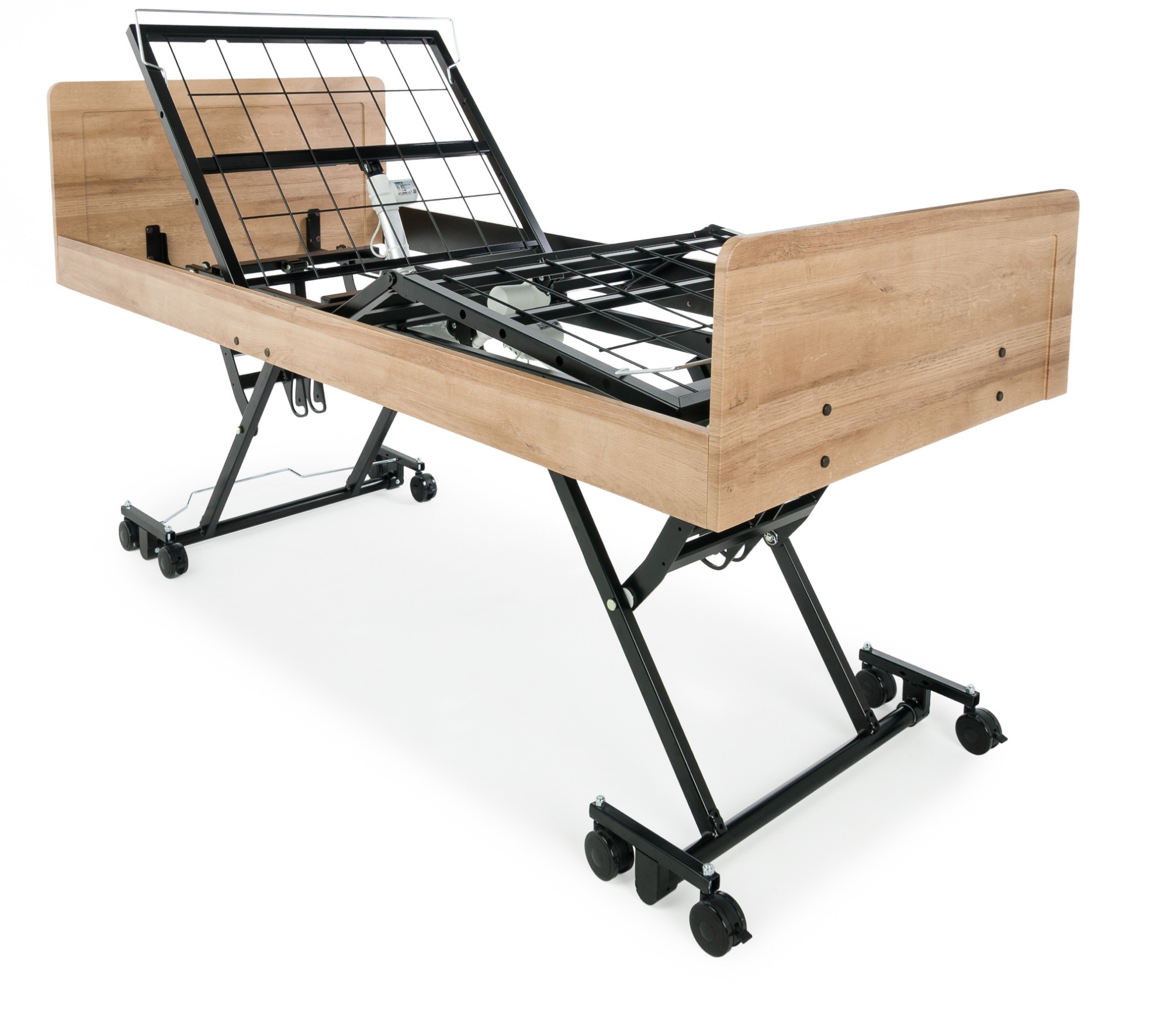

Raised Head

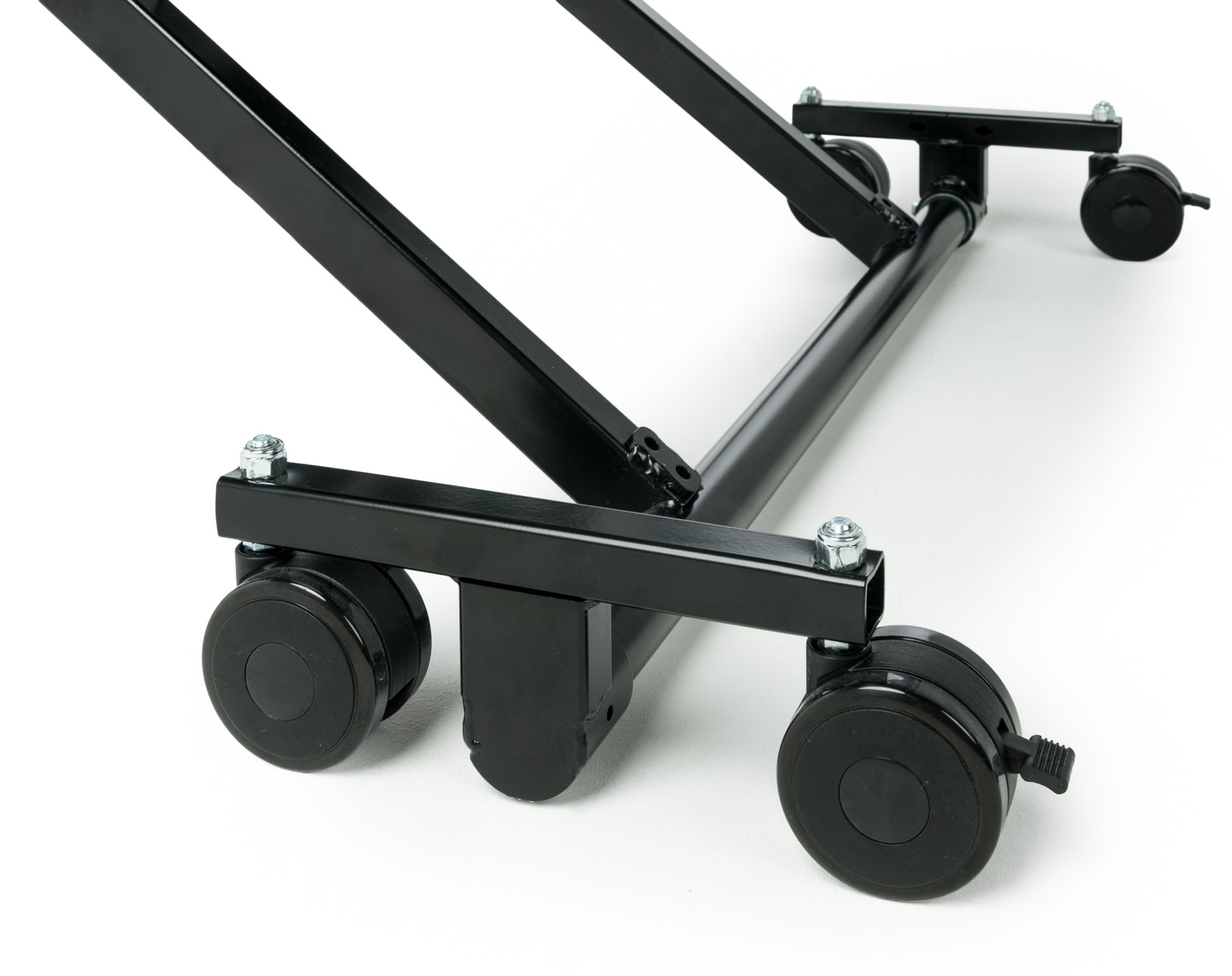

Casters

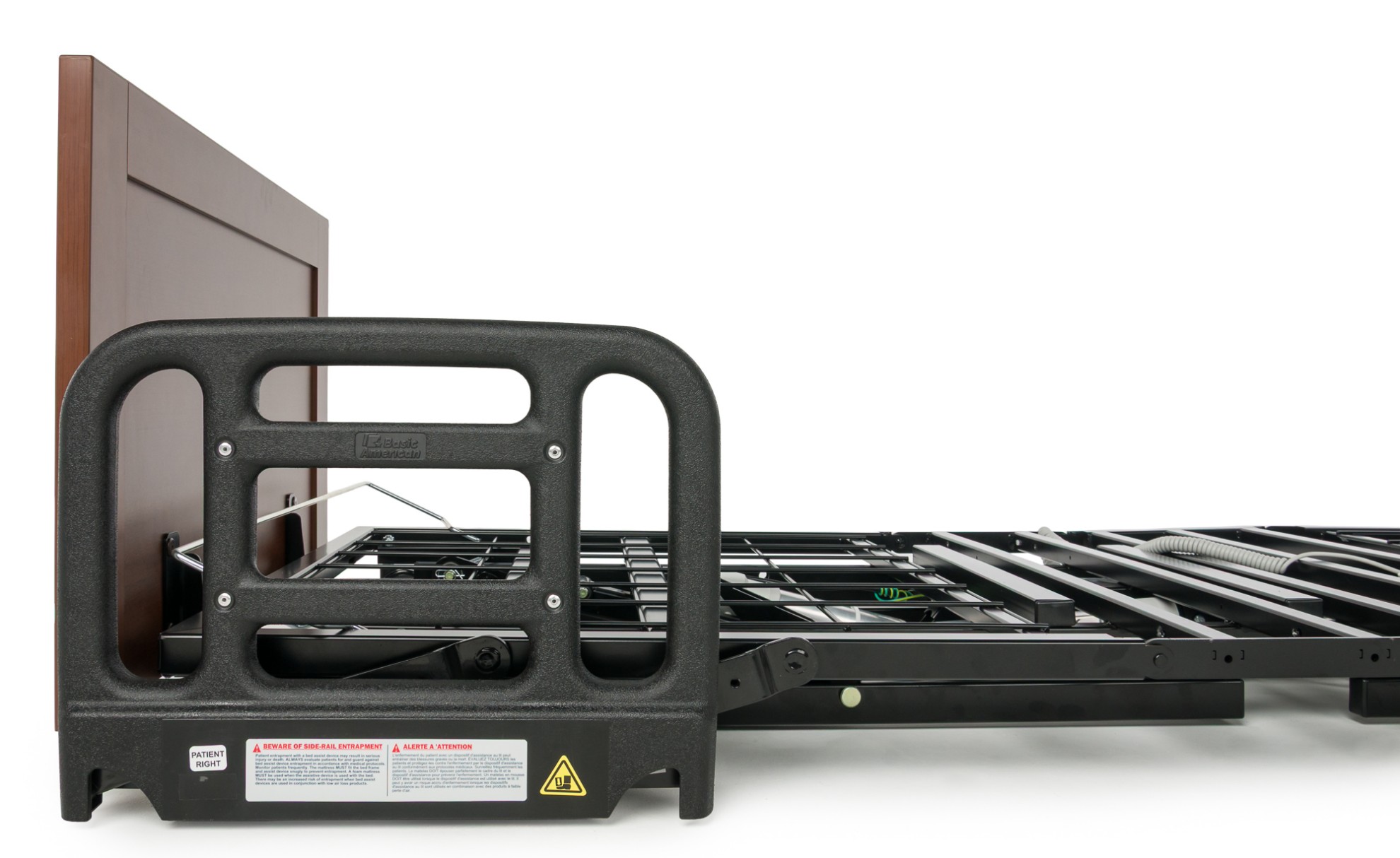

Counter Rotation Rail - Down

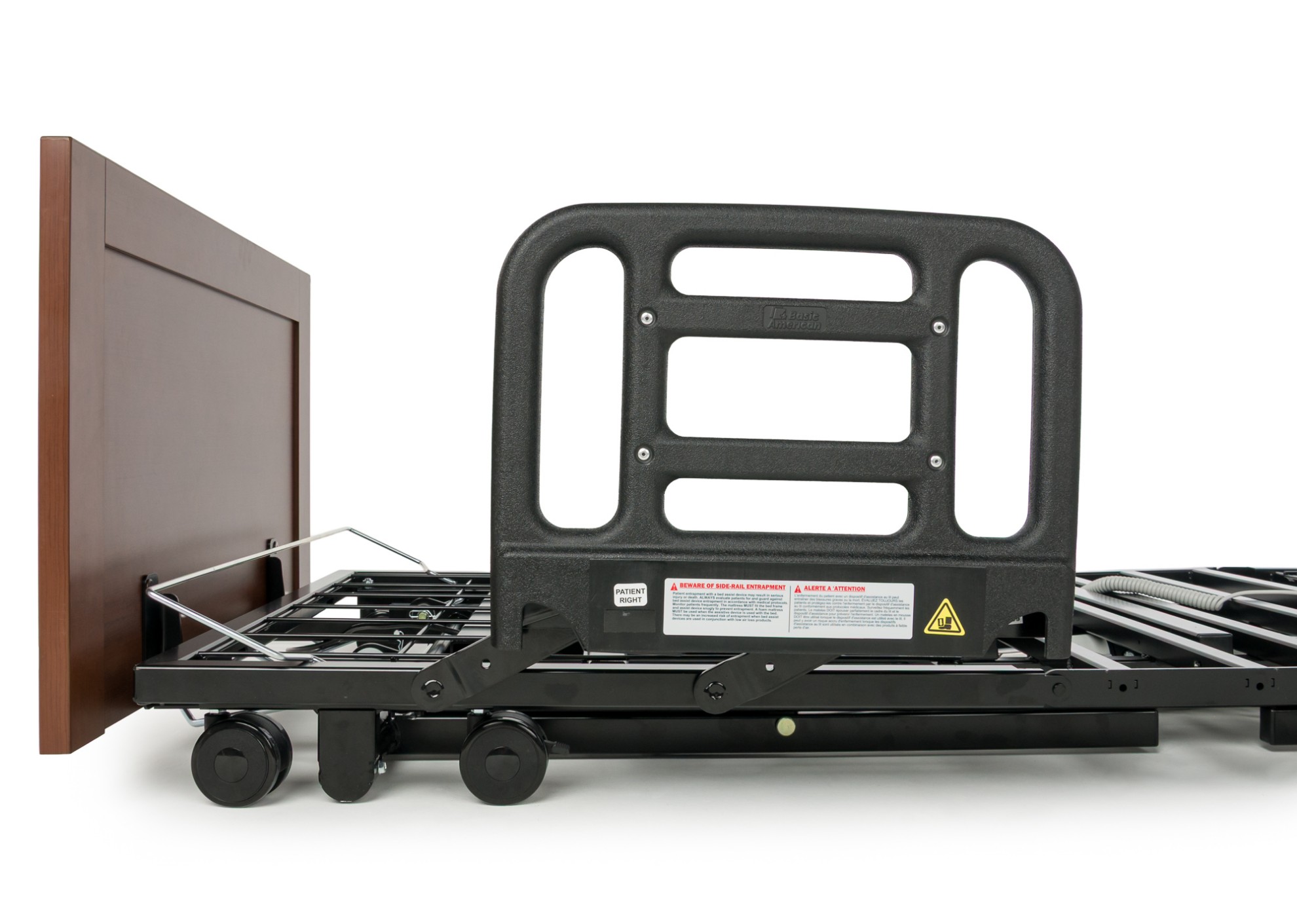

Counter Rotation Rail - Up

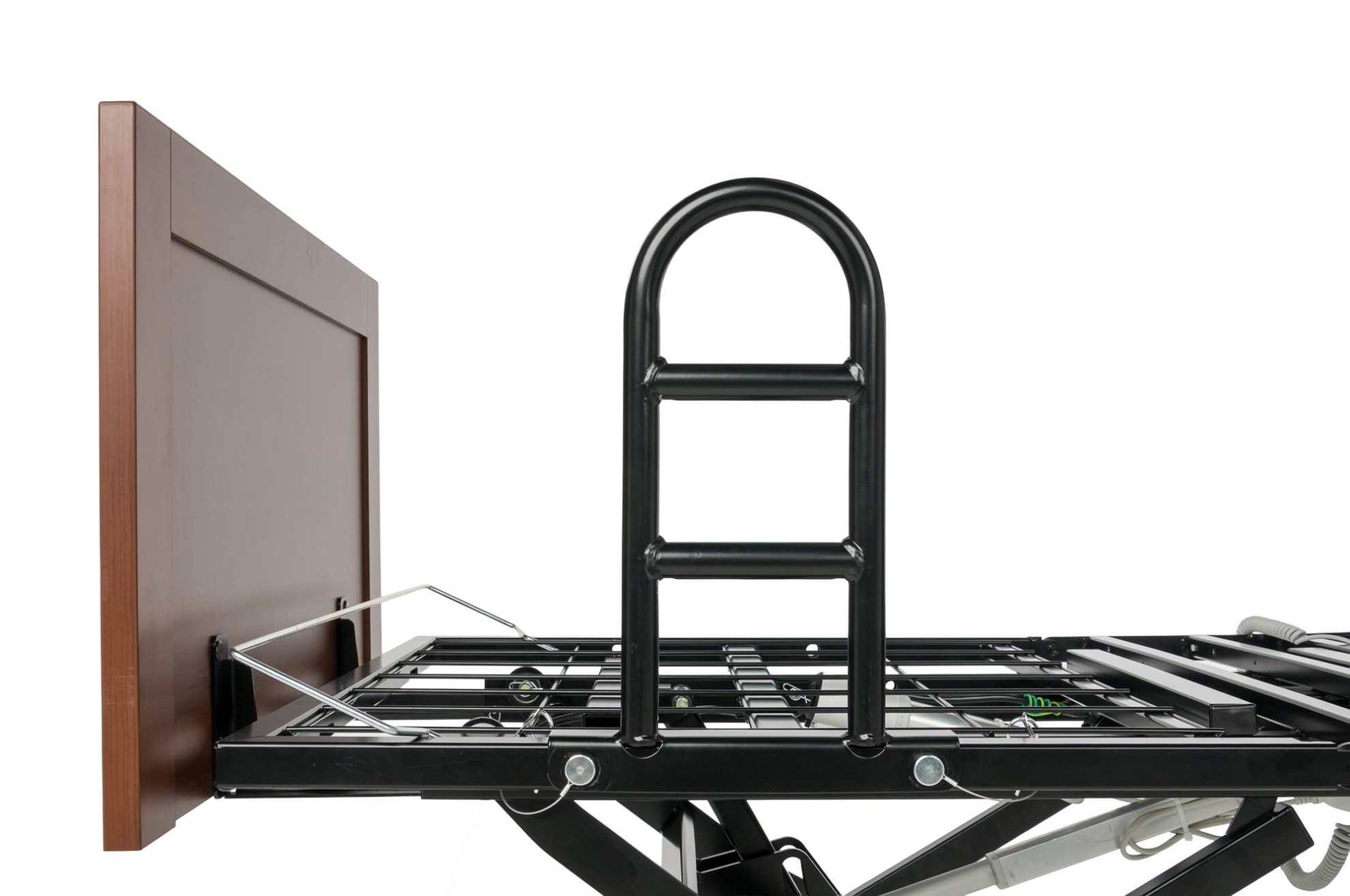

Fixed Rail
Head Knee

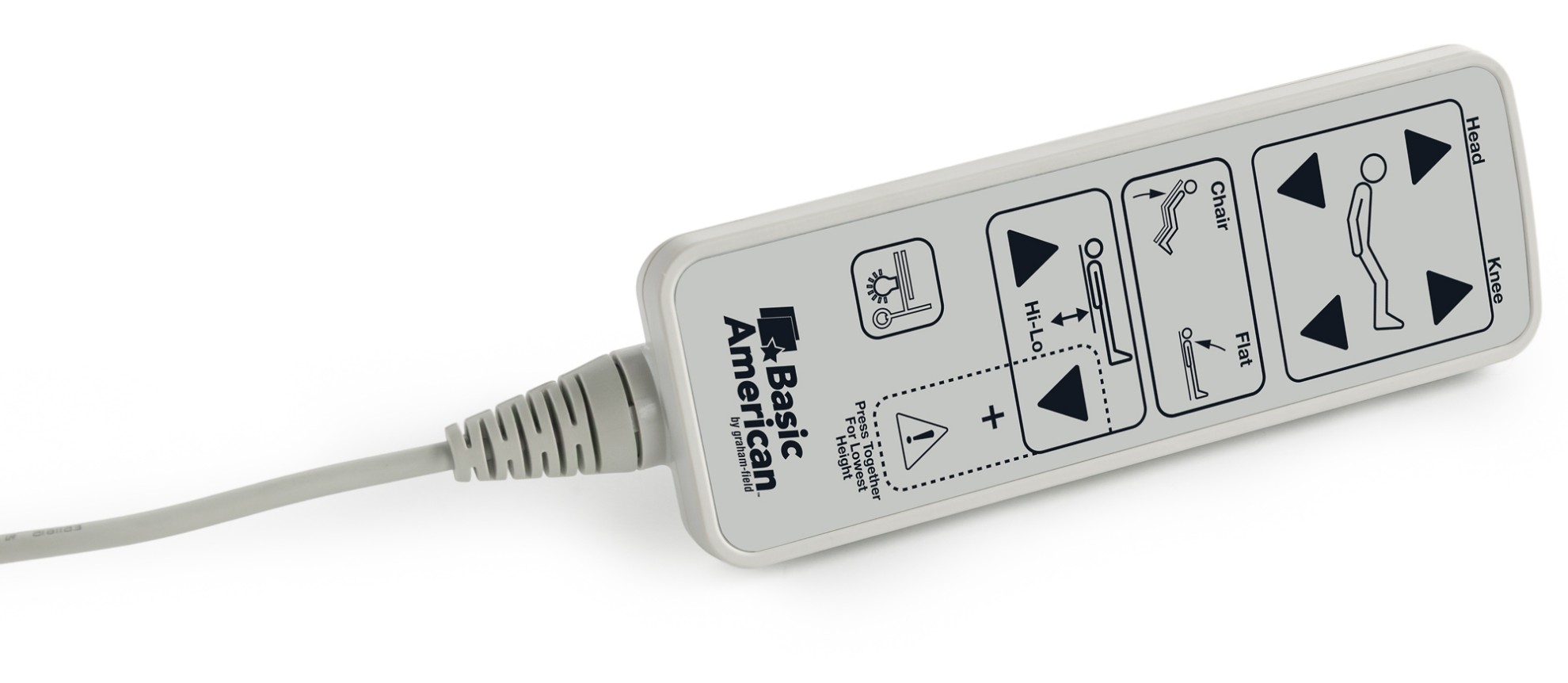

Pendant

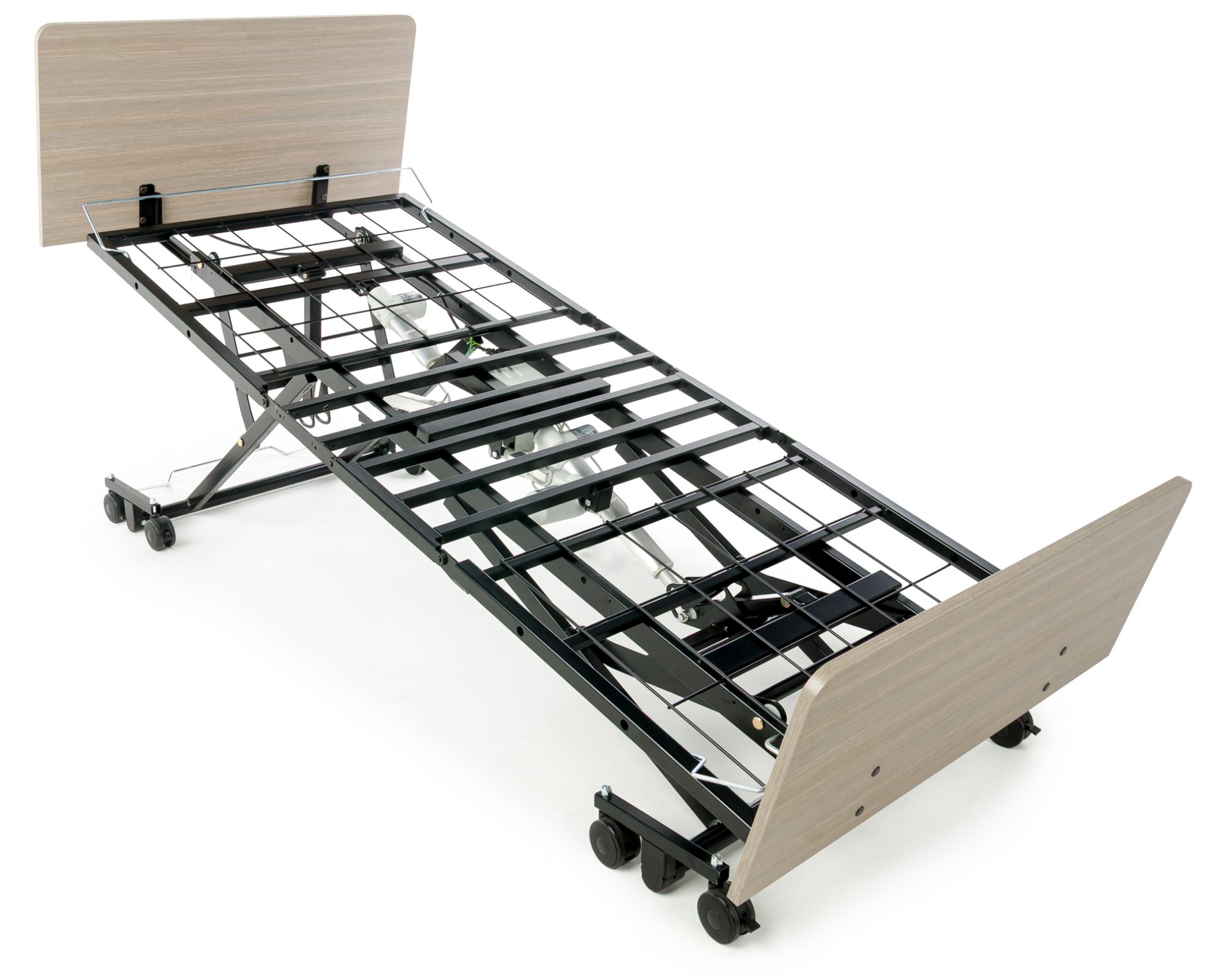

Reverse Trendelenburg
Supine

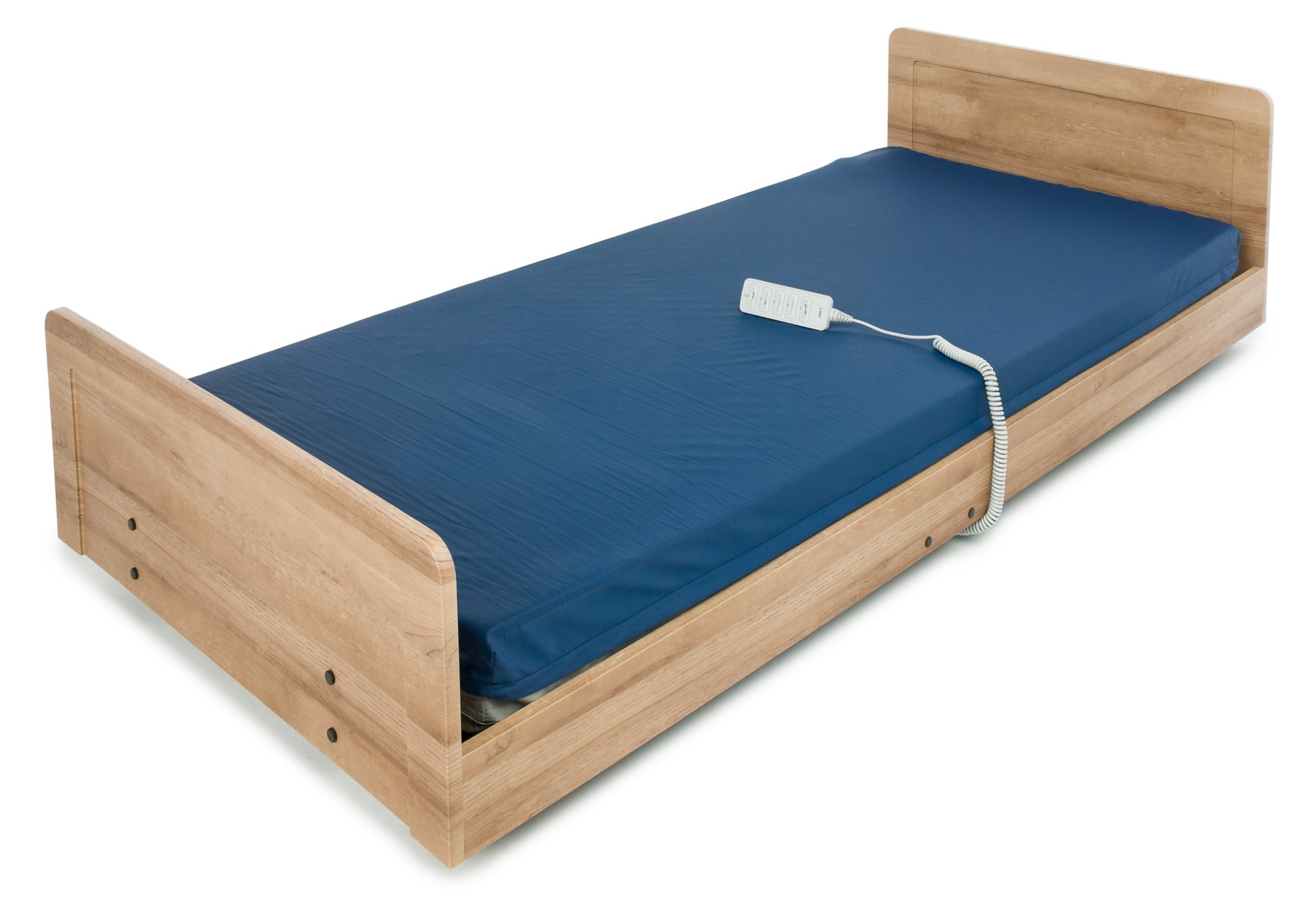

Supine Low
Supine Low
Trendelenburg

Made to Order Item. No returns or cancellations. Exception item. Freight charges always apply.

Please add a delivery contact name and phone number in the ship to address (required for residential deliveries). This is an oversized item and must ship by truck (LTL carrier) rather than small parcel. Please indicate if lift gate (no loading dock) and/or inside delivery (to door/garage) services are required; additional fees apply - contact customer service if needing a quote. Any services needed in order to complete delivery that are not indicated at the time of order placement will be billed separately, including any carrier's re-delivery, lift gate, residential, or inside delivery fee.

AmeriLux™ Sleep System

Introducing AmeriLux™ — Where Safety Meets Style

Headboards, footboards, and assist devices are sold separately.

View Available Head/Foot Boards

View Available Bed Rails and Assist Devices

Brand: Basic American Medical Products®
To view pricing information, please log in.
Product Accessories
Picture of Counter-Rotating Assists (pair)

Counter-Rotating Assists (pair)

Compatible with the AmeriLux™ Bed
Picture of High Fall Pad

High Fall Pad

High Fall Pad 30 in x 76 in x 9 in (75 x 22.8 x 193 cm) for AmeriLux Bed
Picture of Fixed Assist Bar

Fixed Assist Bar

Compatible with the AmeriLux™ Bed
Picture of Underbed Light 3 Kit

Underbed Light 3 Kit

Multi-level Underbed Light for night-time safety for Zenith 9200, Zenith 7200, and Matrix 6200 beds. Note that Zenith 9100, Zenith 7100, Matrix 6100, Matrix 5100, and Matrix 4100 beds manufactured after 4/1/2017 will require Advanced Positioning hand pendant, Standard Functionality staff control or Advanced Positioning staff control

We’re excited to unveil AmeriLux™, the latest innovation in our extended care bed line—designed to elevate resident safety while blending seamlessly into residential-style settings.  With its ultra-low profile and sleek black frame, AmeriLux™ redefines the look of traditional beds—offering a more modern, design-friendly aesthetic without compromising on safety.

Built with advanced Ultra-Low technology, AmeriLux™ significantly reduces the risk of fall-related injuries by lowering close to the ground—providing peace of mind for both caregivers and families.  For residents at higher risk, an optional fall mat transforms potential falls into gentle rolls, offering an added layer of protection without feeling clinical. With AmeriLux™, you don’t have to choose between elegance and safety—you get both.

Features & Advantages:

Made in the USA

  • Minimal lead times
  • Quality craftsmanship and manufacturing Ultra–Low Technology

Ultra–Low Technology

  • Adjustable height from floor level at 4 inches to nursing height at 30 inches
  • Bed electronics feature full floor clearance, preventing floor contact vs similar models offered by competitors
  • Available as 36 inch width or 42 inch width bed
  • Sleek, black frame

Customizable Design Options

  • Creative flexibility to align seamlessly with your design aesthetic
  • Personalization by adding wooden side boards for a cozy, home-inspired feel
  • Offered in 7 standard board styles & 13 finishes, with the possibility of custom styles or finishes upon request

SilverSolutions™

  • Located in the powder-coating which provides antimicrobial surface protection
  • Deters the growth of odor-causing bacteria

Sealed Ball Bearings

  • Allows seamless, continuous, and noiseless movement
  • Maintenance Free

Optional ‘Plug and Play’ digital electronics enable future feature additions

  • Staff Control for Trendelenburg and Reverse Trendelenburg
  • Chair Position
  • Under-Bed Light
  • USB Charger

Caster locking system

  • Four locking casters (standard)
  • Easily visible and accessible at ALL heights and widths Industry-leading, energy-saving electronics
  • Reduces Energy Consumption

Grounded bed with right-angle hospital grade plug

  • Provides added safety for both staff and residents US Patented design of high/low mechanism
  • Housed with the mainframe tubes; no holes are located on the top side that will harbor bacteria

Grid sleep surface with cross braces

  • Sturdy, no-sag sleeping surface

SKUAdjustable Surface LengthDeck WidthHeight Travel RangeSafe Work LoadMaximum Patient WeightActuators
ALX3680 - 84 in (203.2 - 213.36 cm)36 in (91.44 cm)4 - 30 in (10.16 - 76.2 cm)550 lb (249.5 kg)500 lb (226.8 kg)4 dc
ALX4280 - 84 in (203.2 - 213.36 cm)42 in (106.7 cm)4 - 30 in (10.16 - 76.2 cm)550 lb (249.5 kg)500 lb (226.8 kg)4 dc

Warranty:

  • Main Frame & Welds: 12 years
  • Control Box & Actuator Motors: 5 years
  • Hand Control Pendant & Cabling: 3 years
  • Staff Control & Cabling: 3 years

SKUDescriptionUOMPrice
ALX36
AMERILUX 36" DECK
UPC: 717076420259
Login to view price
ALX42
AMERILUX 42" DECK
UPC: 717076420266
1 EA
Login to view price

*
*
*
*
*
*
