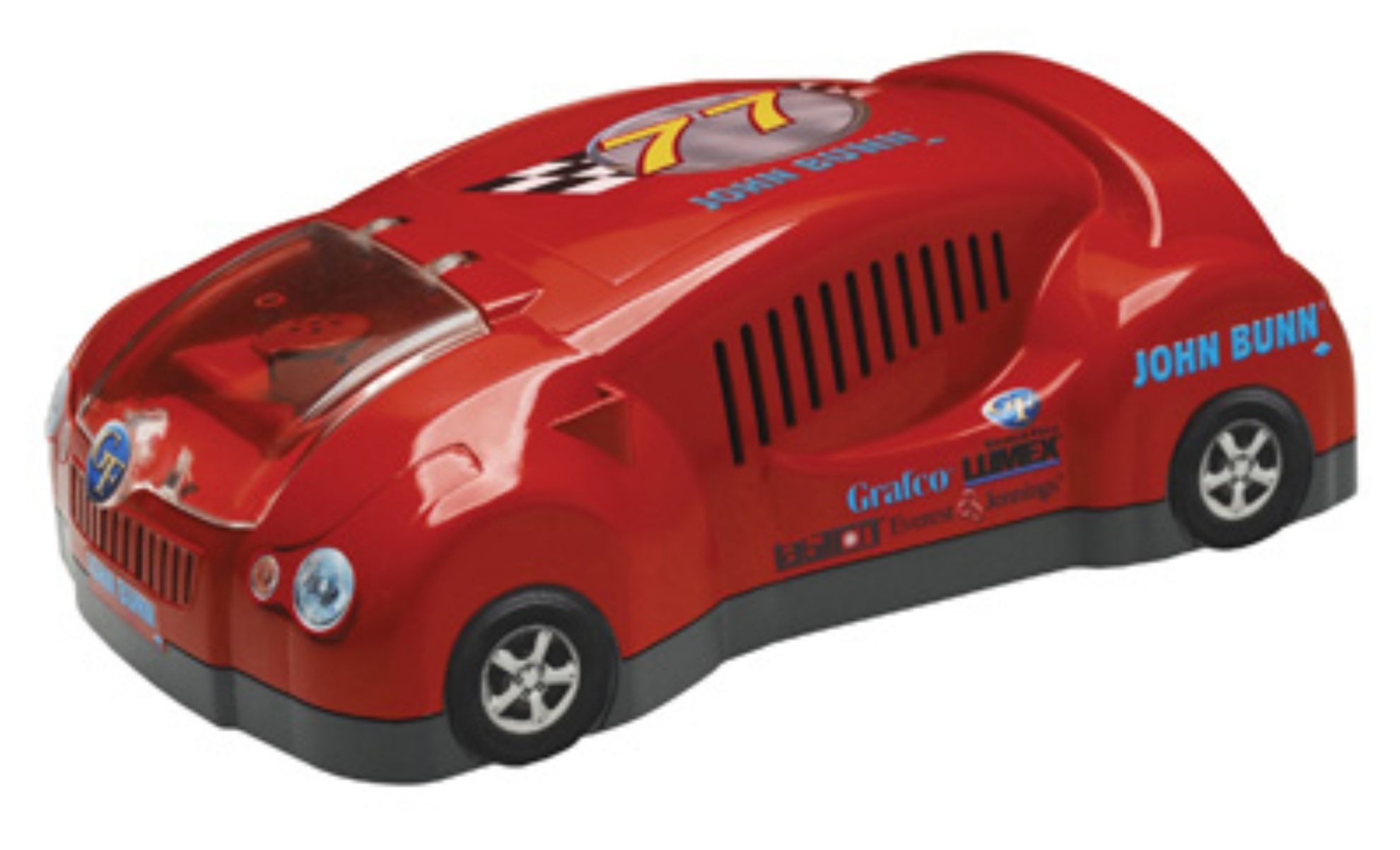

Neb-u-Tyke Speedster

Neb-u-Tyke Speedster

Colorful, Child-Friendly Racecar design for aerosol therapy
SKU: JB0112-067
To view pricing information, please log in.

This interactive, child-friendly design provides an ideal solution for effective aerosol treatment for children. Designed with an attractive car shape, this will keep children relaxed and entertained during aerosol treatments. The Neb-u-Tyke® Speedster is the latest addition to the Graham-Field line of quality nebulizer compressors that offer innovation, performance, and value for both patients and providers.

Features

  • Light weight, reliable, piston-driven compressor
  • Colorful, child-friendly design complete with stickers to personalize during aerosol treatment
  • Convenient and compact design for easy transport and storage
  • Comes complete with Nebulizer Accessory Kit
  • Designed to meet the requirements of HCPCS Code: E0570
  • Five year limited warranty

Package Contains:

  • 1 Neb-u-Tyke® Speedster Nebulizer Compressor
  • 1 User Manual
  • 1 “T’ Adaptor
  • *1 Nebulizer Accessory Kit complete with
    • 1 Reusable nebulizer (single patient use only)
    • 1 Pediatric mask
    • 1 Adult Mask
    • 1 Mouthpiece
    • 1 PVC tubing
    • 3 Replbulizer (single patient use only)

Specifications

  • Overall Width: 6.9" (17.52 cm)
  • Overall Length: 10.2" (25.9 cm)
  • Overall Height: 3.7" (9.39 cm)
  • Operating Temperature Range: 41°F to 104°F ( 4.4°C to 40°C)
  • Operating Humidity Range: 30% to 95% RH
  • Storage Temperature Range: 14°F TO 158°F (-10°C to 70°C)
  • Storage Humidity Range: 10% to 95% RH
  • Product Weight: 3.8 lb (1.72 kg)
  • Sound Level: < 55 dBA
  • Max Compressor Pressure: 30 psi
  • Max Compressor Flow: ≈ 12 lpm
  • Nebulizer Particle Size: ≤ 5 μm
  • Nebulizer Capacity: 5 ml

?FDA (USA) restricts the sale of this device to or by the order of a physician
*Boiling nebulizer components is not recommended



DimensionsOperating Temperature RangeOperating Humidity RangeStorage Temperature RangeStorage Humidity Range
6.9 x 10.2 x 3.7 inches
(17.52 x 25.9 9.39 cm)
41°F to 104°F ( 4.4°C to 40°C)30% to 95% RH14°F TO 158°F (-10°C to 70°C)10% to 95% RH

Specifications

  • Product Weight: 3.8 lb (1.72 kg)
  • Sound Level: < 55 dBA
  • Max Compressor Pressure: 30 psi
  • Max Compressor Flow: ≈ 12 lpm
  • Nebulizer Particle Size: ≤ 5 μm
  • Nebulizer Capacity: 5 ml

Product Images For Download

SKUDescriptionUOMPrice
Popup Image
JB0112-067
NEB-U-TYKE SPEEDSTER
HPCPS: E0570
UPC: 717076097246
1 EA

*
*
*
*
*
*
