Neb-u-Tyke Neb-a-Doodle

Neb-u-Tyke Neb-a-Doodle

This interactive, child-friendly design provides a solution for effective aerosol treatment for children. Designed with an integrated drawing board, the Neb-a-Doodle will keep child relaxed and entertained during aerosol treatment and can be used over and over again.
SKU: JB0112-070
To view pricing information, please log in.

This interactive, child-friendly design provides an ideal solution for effective aerosol treatment for children. Designed with an integrated drawing board, the Neb-a-Doodle will keep children relaxed and entertained during aerosol treatments and can be used multiple times. The Neb-u-Tyke® Neb-a Doodle Train is the latest addition to the Graham-Field line of quality nebulizer compressors that offer innovation, performance, and value for both patients and providers.

Features:

  • Reliable, piston-driven compressor

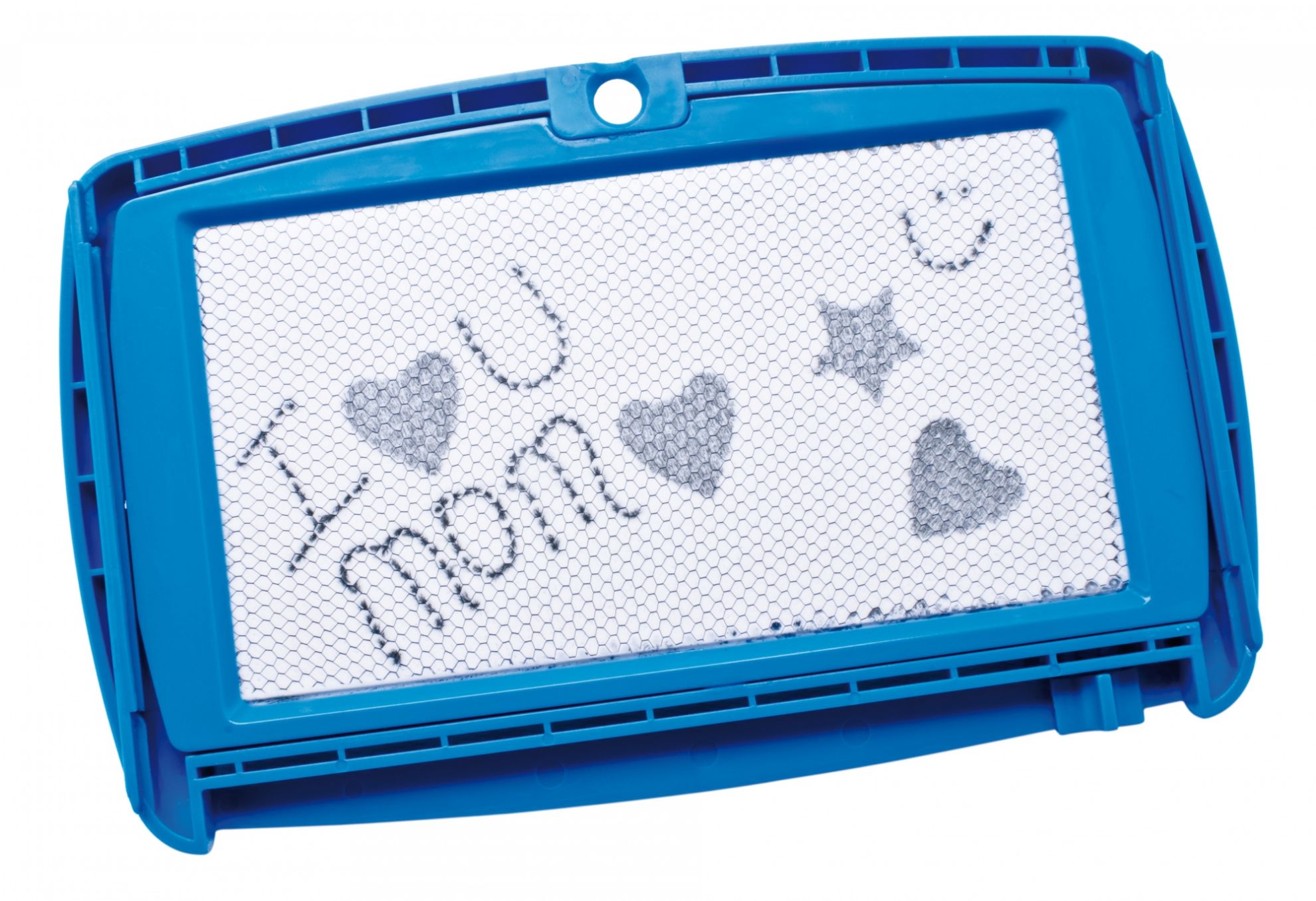

  • Interactive, drawing board for child to draw, doodle, and write on during aerosol treatment
  • Convenient and compact design for easy transport and storage
  • Comes complete with Nebulizer Accessory Kit
  • Designed to meet the requirements of HCPCS Code: E0570Five year limited warranty

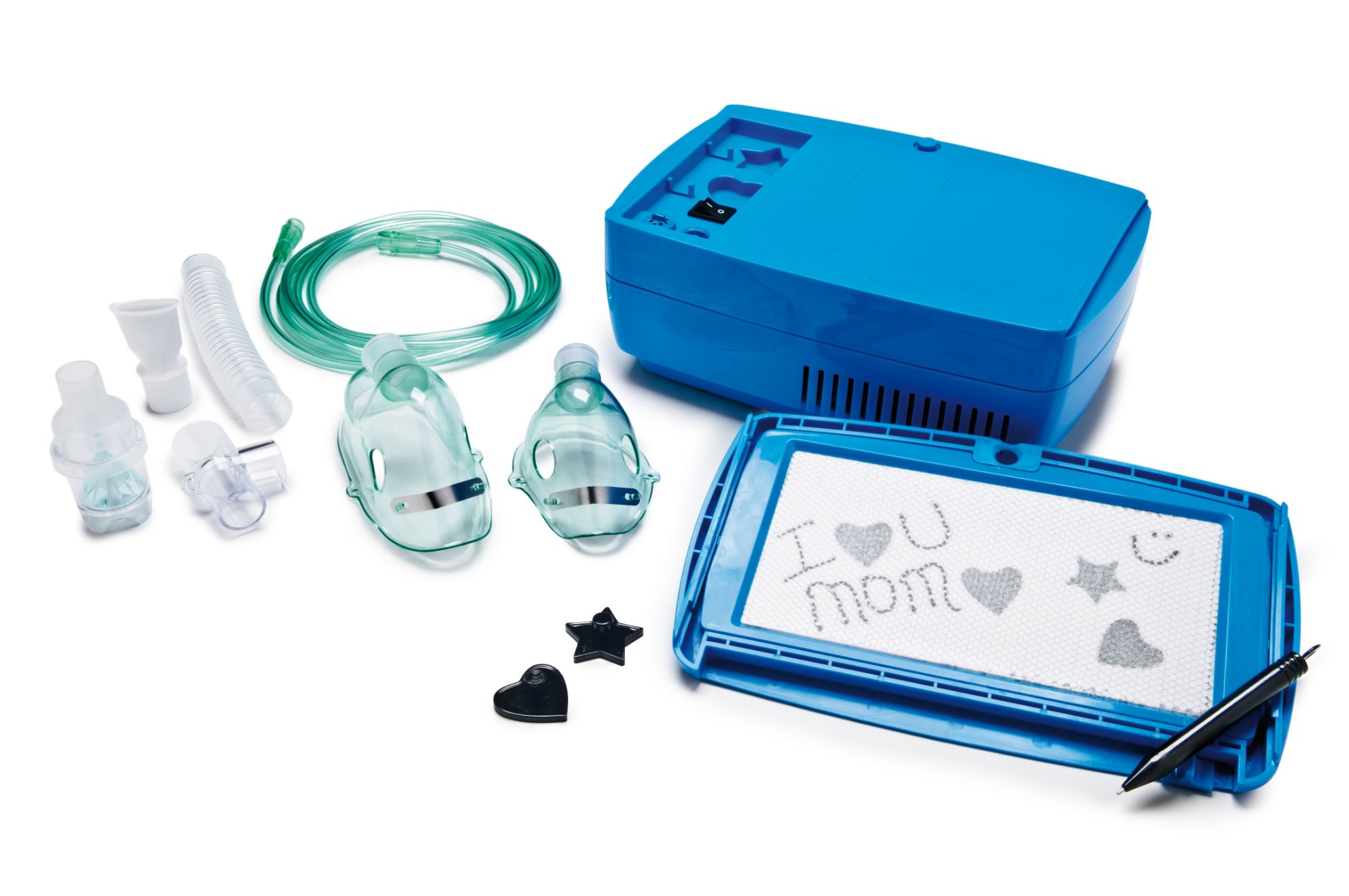

Package Contains:

  • 1 Neb-u-Tyke® Neb-a-Doodle Nebulizer Compressor
  • 1 User Manual
  • 1 “T’ Adaptor
  • 1 Nebulizer Accessory Kit complete with:
    • 1 Reusable nebulizer (single patient use only)
    • 1 Pediatric mask
    • 1 Adult Mask
    • 1 Mouthpiece
    • 1 PVC tubing
    • 1 Reservoir Tube
    • 3 Replacement filters

FDA (USA) restricts the sale of this device to or by the order of a physician
Specifications are subject to change without notice

SKU UOM
JB0112-070Neb-u-Tyke Neb-a-Doodle1 ea

Specifications

  • Power - 115VAC, 60Hz
  • Power Consumption - ≤ 60 watts
  • Operating Temperature Range - 41°F TO 104°F
  • Operating Humidity Range - 30 to 95% RH
  • Storage Temperature Range - 40°F TO 158°F
  • Storage Humidity Range - 10 to 95% RH
  • Dimensions - 10 in × 6.5 in × 4.2 in (255 mm x 166m x 108 mm)
  • Weight - 4 lbs
  • Max Pressure (Compressor) - 32.5 psi
  • Max Flow (Compressor) - Approx 12 LPM
  • Particle Size (Nebulizer) - ≤5 microns
  • Capacity (Nebulizer) - 10 ml
  • Method Of Nebulization - Piston Driven
  • Sound Level - under 57 dBA

SKUDescriptionUOMPrice
Popup Image
JB0112-070
NEB-U-TYKE NEB-A-DOODLE
UPC: 717076110846
1 EA

*
*
*
*
*
*
